Introduction

About a year ago, over the course of a few weeks, I completely gutted and replaced the electronics in my Ric. While at first sight it might seem sacrilegious to modify a Rickenbacker 360/12 like this—I can assure you I have not lost my mind.

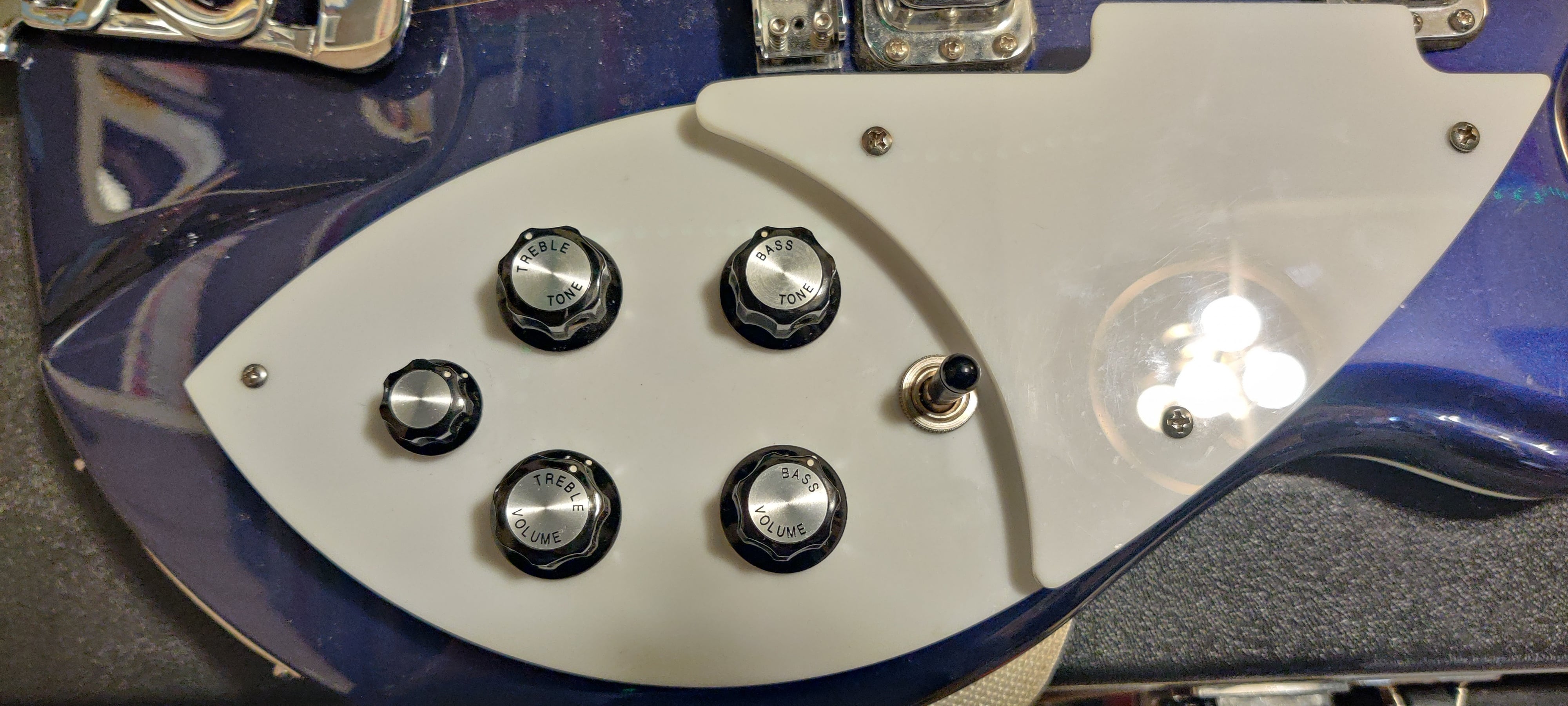

1. I set aside the original pickguard with all the electronics.
2. I didn't remove any material and the whole thing is reversible with a little solder.
3. These are all sensible mods.
4. It's my guitar and I can make it awesome if I want to.

What am I Looking At?

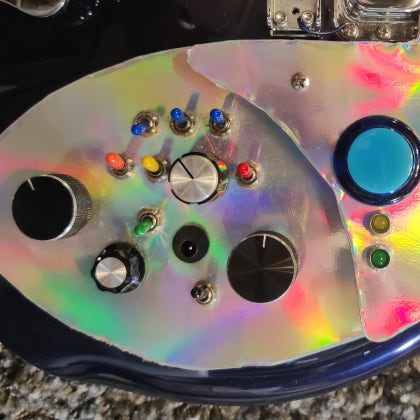

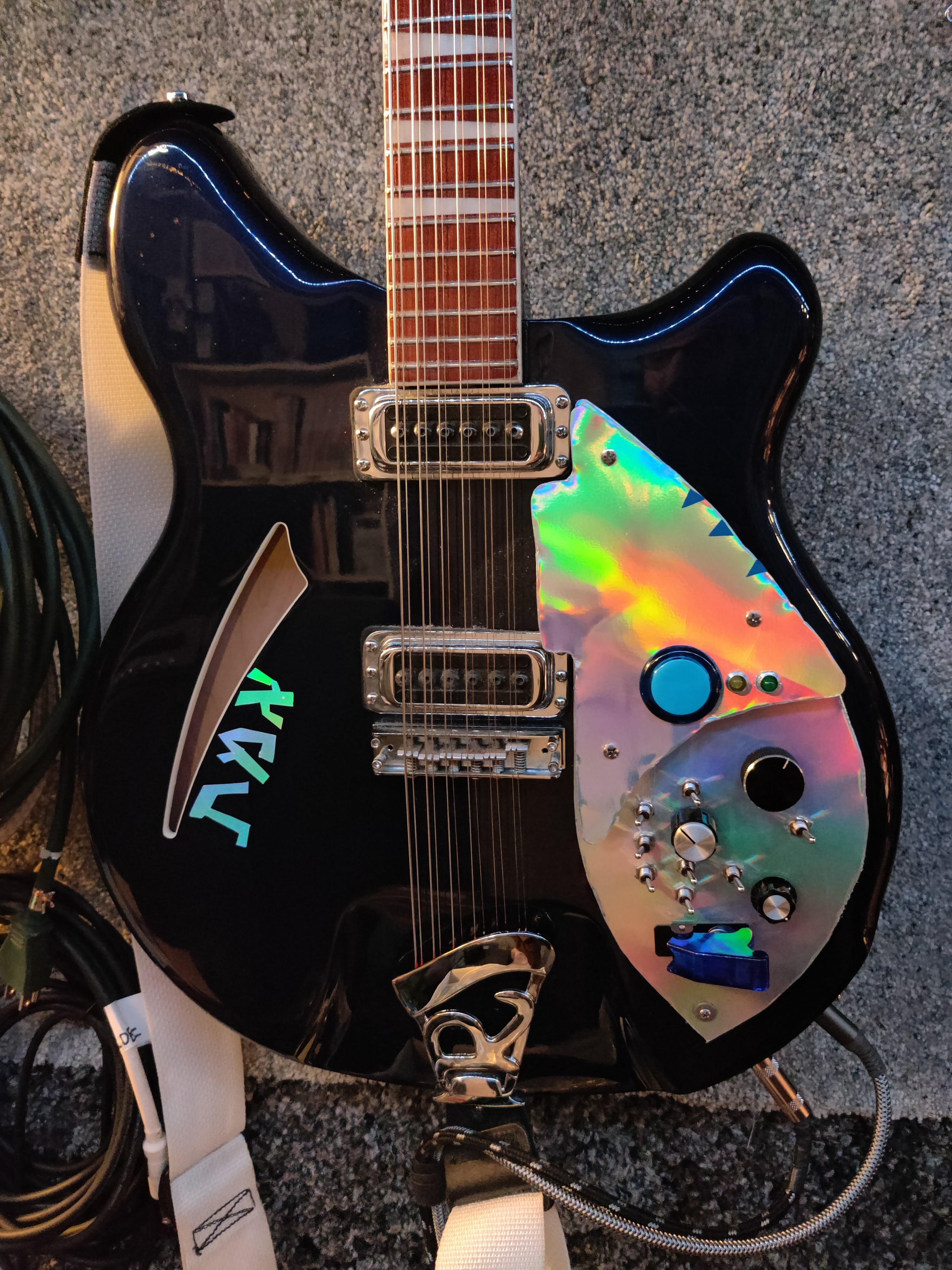

Let's answer this question before I get into any stories. Looking at the photo above…

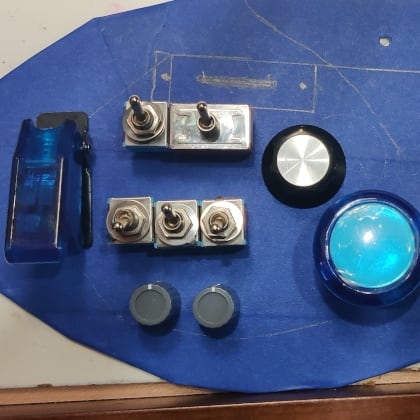

• First row: pickup toggles (blue)
  • Piezo
  • Bridge
  • Neck
• Second row of toggles:
  • Toggle (orange) Dan Armstrong Orange Squeezer clone
  • Toggle (yellow) Alembic Strat-o-blaster clone with gain knob

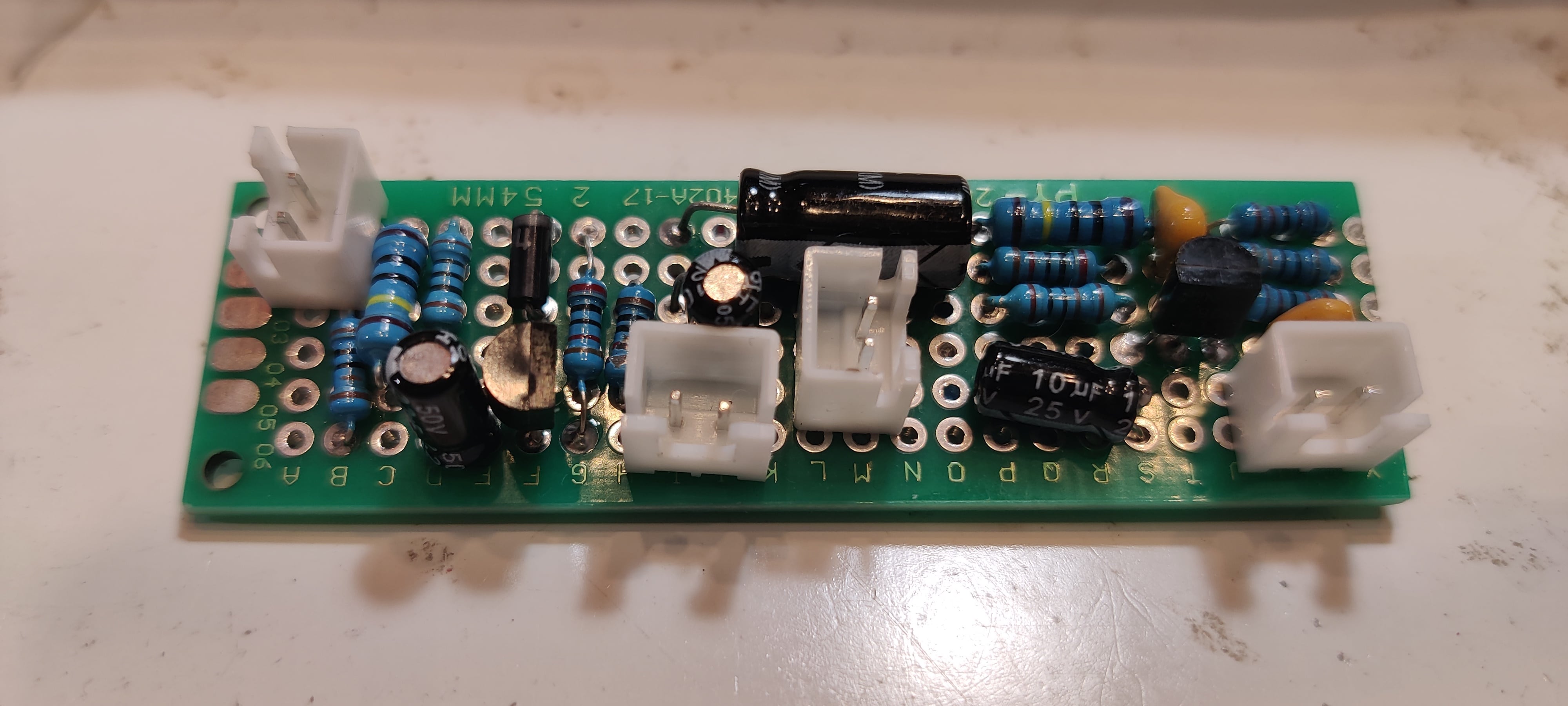

  • Toggle (red) Vox Treble Booster clone
• Then zig-zagging around the bottom…
  • Pre-effects volume knob (black) that is a pull switch that adds a pair of Germanium 1N34A clipping diodes.
  • Toggle (green) and rate knob (silver top) for tremolo. The power is separate from the rest of the circuitry to minimize clicking. There is a small sliding toggle hidden between the pickguards.
  • 9V power jack
  • Toggle (black) that bypasses all the buffers and onboard electronics
  • Post-effects volume knob (black) that is a pull switch that bypasses the pedalboard
  • Arcade-style kill switch
• The three LEDs (including the kill switch):
  • (blue) indicates power
  • (yellow) currently also indicates power but I'm planning to make it show how hard the compression is working
  • (green) tremolo rate

History

I bought this guitar new in 2010 and it has mostly behaved itself. I wasn't fully utilizing most of the existing controls. I pretty much kept the tone knobs and volume knobs dimed and I only came to understand how the fifth knob works¹ after I removed it.

I wanted more convenience and better performance from the pedals I always left on. The compressor on the floor was too noisy. I craved some kind of built-in modulation. I envisioned features that would compliment the beautiful instrument I already had.

So, I set out to find simple circuits that would be small and not consume too much power.

Roger McGuinn

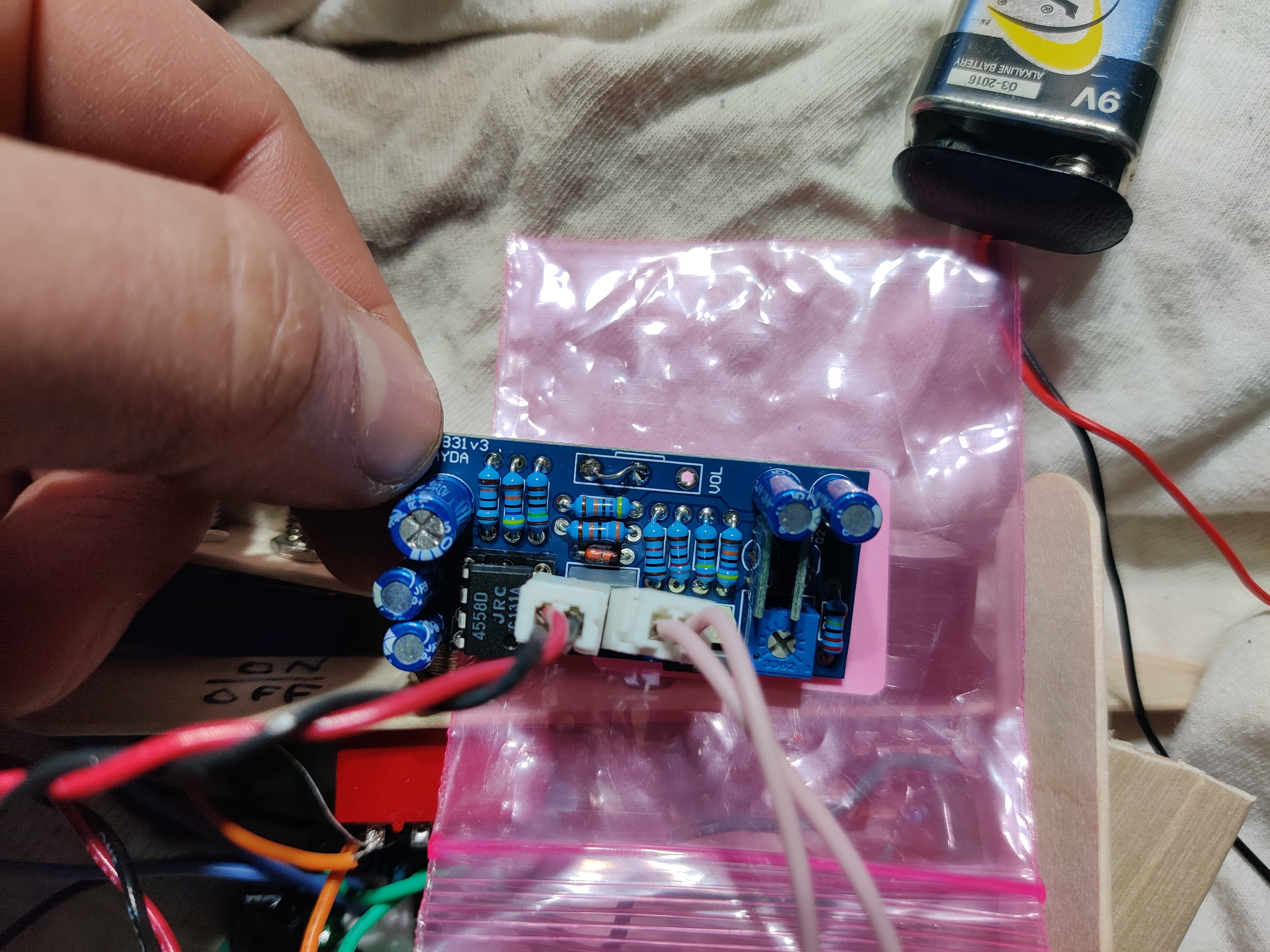

Having the Ric 360/12 meant I was already in Roger McGuinn's shadow, so I researched his gear. I learned he put a Vox Treble Booster into his guitar and later had someone from Rickenbacker add a compressor, though now he recommends using a Janglebox. The compressor schematics were hard to find and people on the forums say the original circuit isn't even that great. So I went with a compressor that I knew would be simple and I wouldn't have to fiddle with any knobs—the Dan Armstrong Orange Squeezer.

So far, I'm being reasonable, right?

Jerry Garcia

I happened upon this video, How to Sound Like Jerry Garcia: DIY Grateful Dead Guitar Rig, and I knew I needed a few more “reasonable” things.

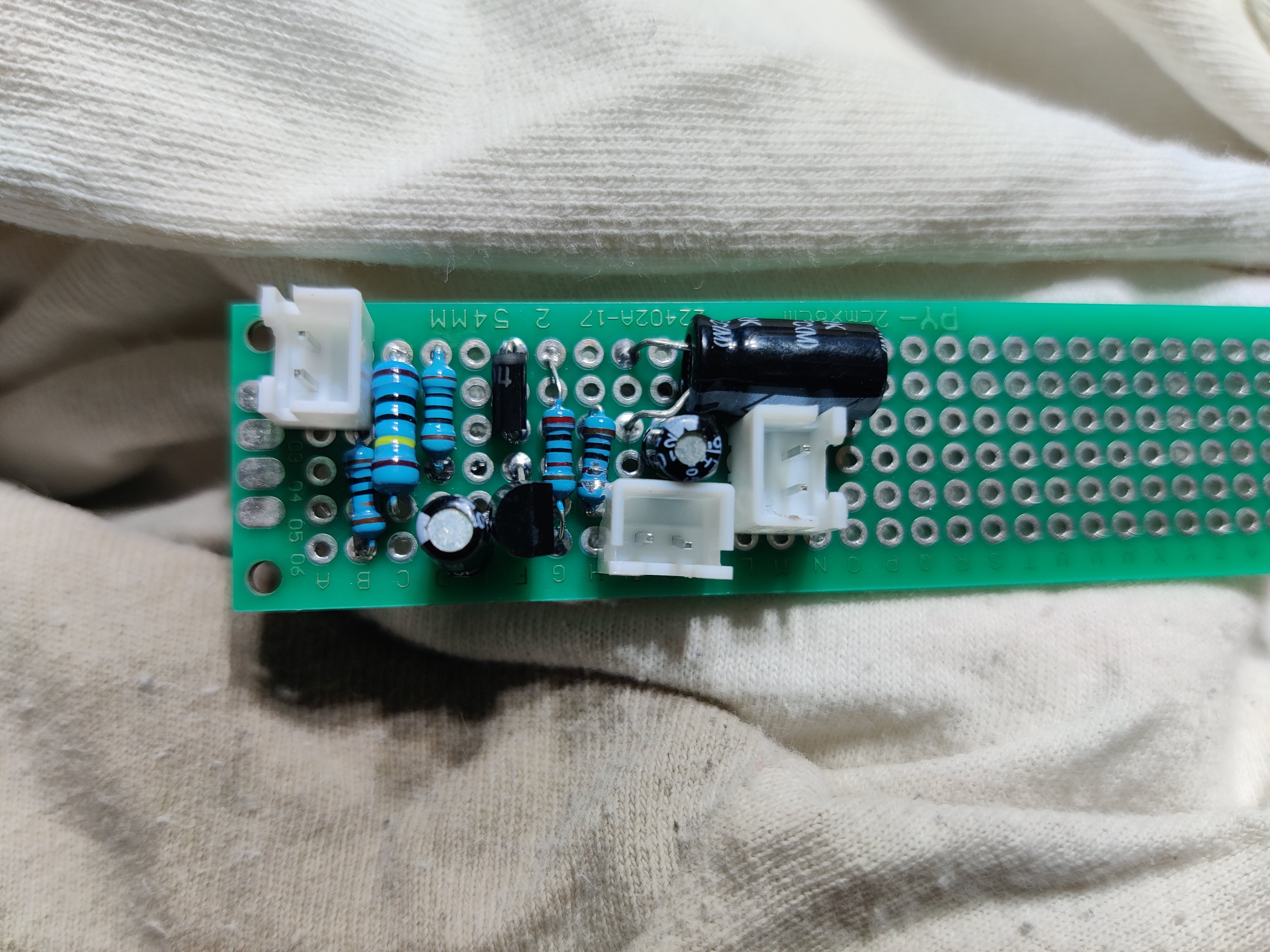

Jerry Garcia's tone is due in large part to the preamp built right into the guitar. He's had several over the years, but I chose to clone the Alembic Strat-o-blaster because I thought the transistors would use less power than an opamp. (Looking back, I'm not convinced that's the case.)

Beyond that he had a volume knob on his guitar that controlled the volume after his effects. They call it an OBEL, or Onboard Effects Loop. The signal is buffered in the guitar for the long trip to the effects and back before going to the amp. This allowed him to adjust his volume without changing how his envelope filter or fuzz responded. He could also flip a switch to bypass his effects altogether. Neat!

I've definitely had gigs before where, mid-song, it's apparent my volume isn't where it should be. Being able to adjust from the guitar instead of fiddling with dirt pedal levels would be incredibly handy.

I really tried to find a way to get a post-effect volume knob without having so many cables going in and out of the guitar. But I realized my Ric already had a mono and stereo jack as part of the Ric-O-Sound² feature which I never found a worthwhile way to use.

Add a JFET and a preamp, and Bob's your uncle.

That Old Western Sound

Somewhere between psychedelia and surf lies a glorious tremolo sound that adds a beautiful shimmer to an already shimmery twelve-string strum. I loved how my Ric sounded through the tremolo in my Rickenbacker T-25 practice amp, but I couldn't quite figure out how to clone it from the schematic.

I checked out a lot of tremolo circuits. None stood out and I thought, “how hard can it be to make the volume go up and down?” At the time it was pretty hard for me. I tried a few different approaches, gave up, revisited earlier ones, and gave up again.

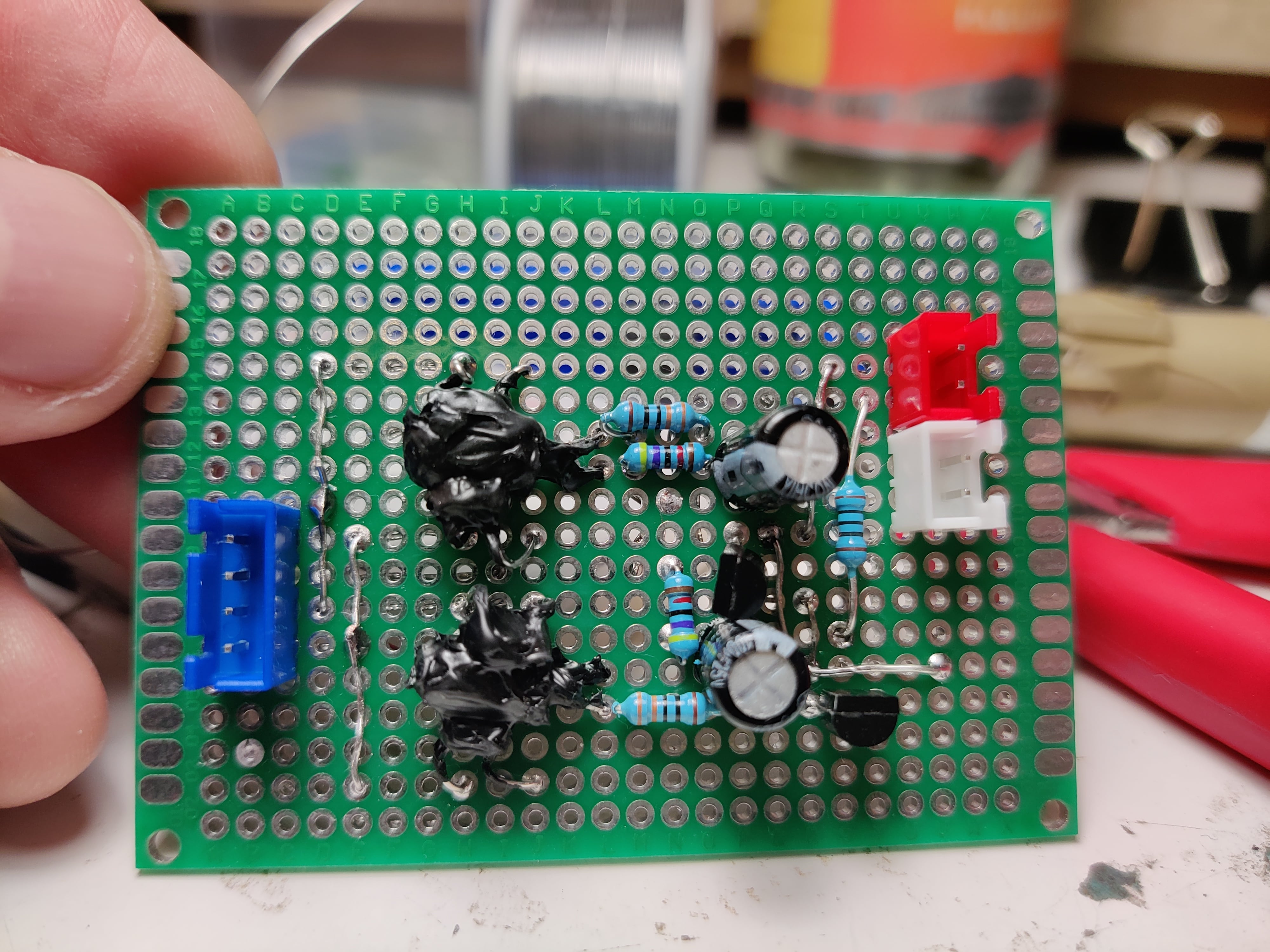

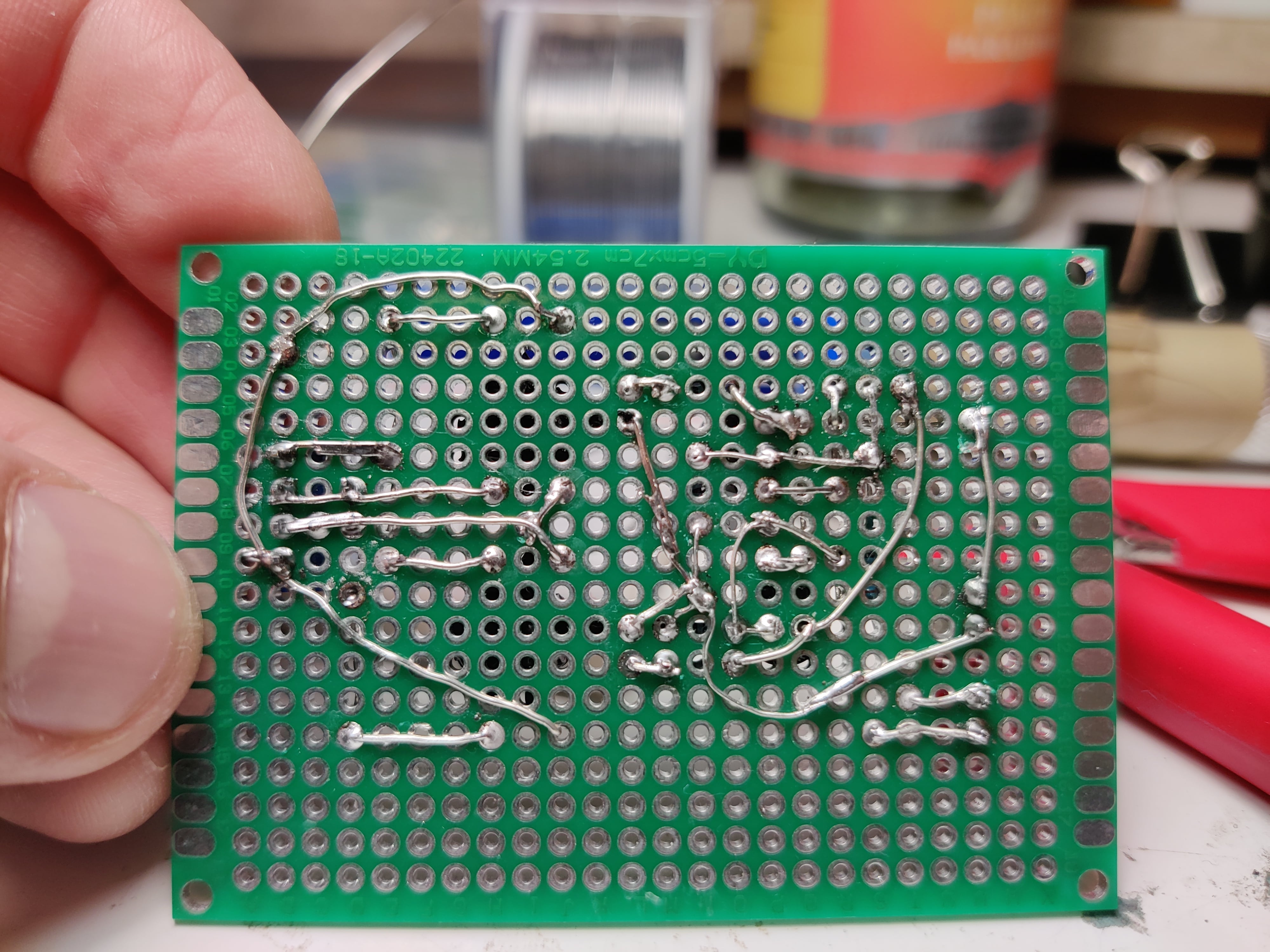

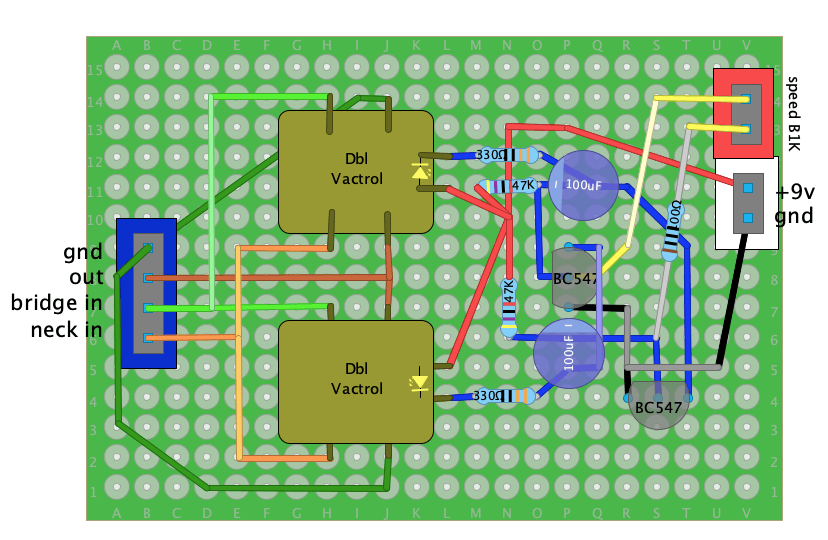

Eventually, I learned how to make a simple alternating LED-blinking circuit with capacitors and I paired the LEDs with LDRs (Light Dependent Resistors). I also wanted to take advantage of having the circuit inside the guitar, so I came up with a tremolo that alternates volume between the two pickups. It thought it would sound like a harmonic tremolo, but because LDRs have different resistance across frequencies, it actually sounds more like a Uni-Vibe. Cool!

Other Experiments

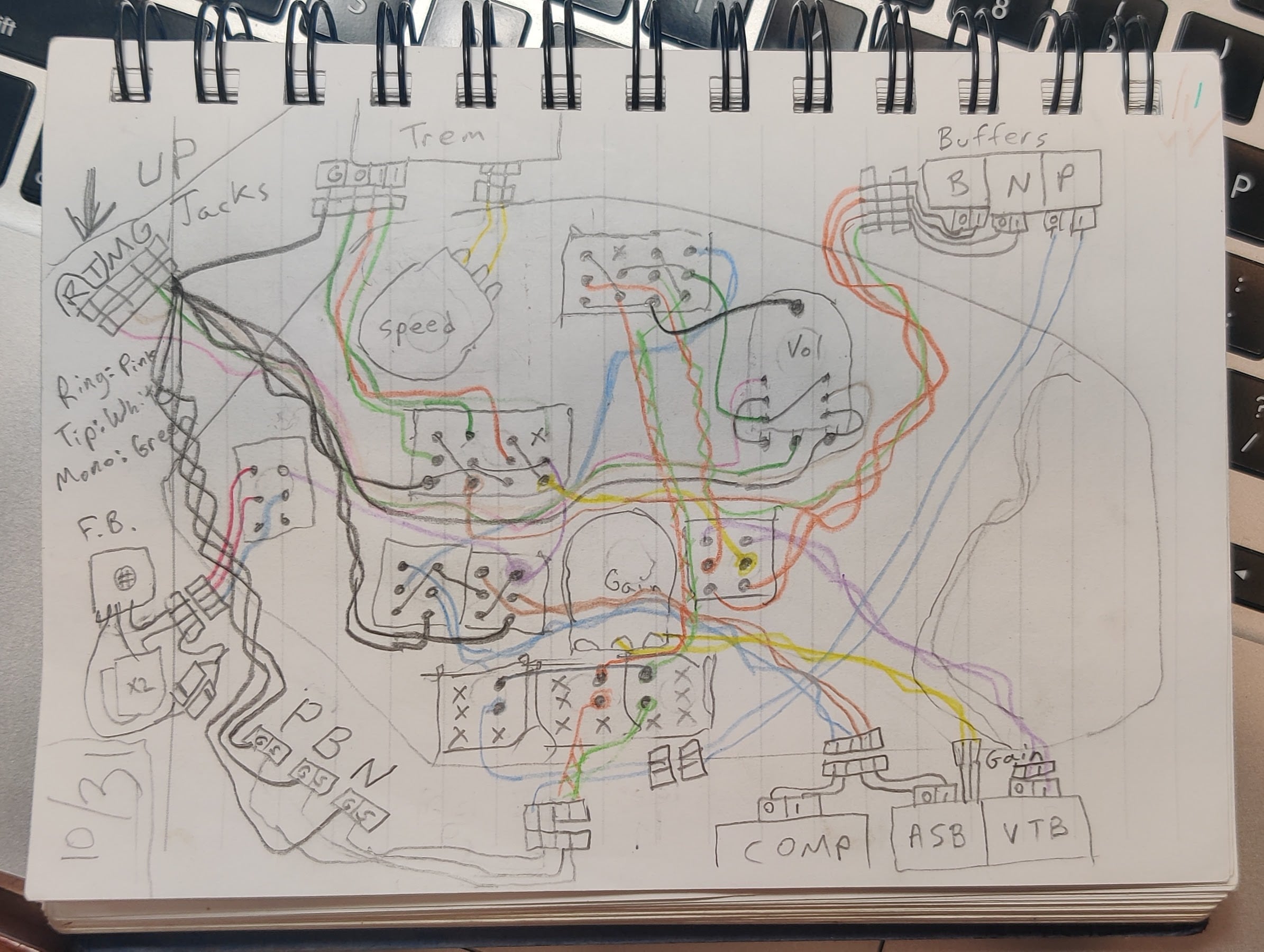

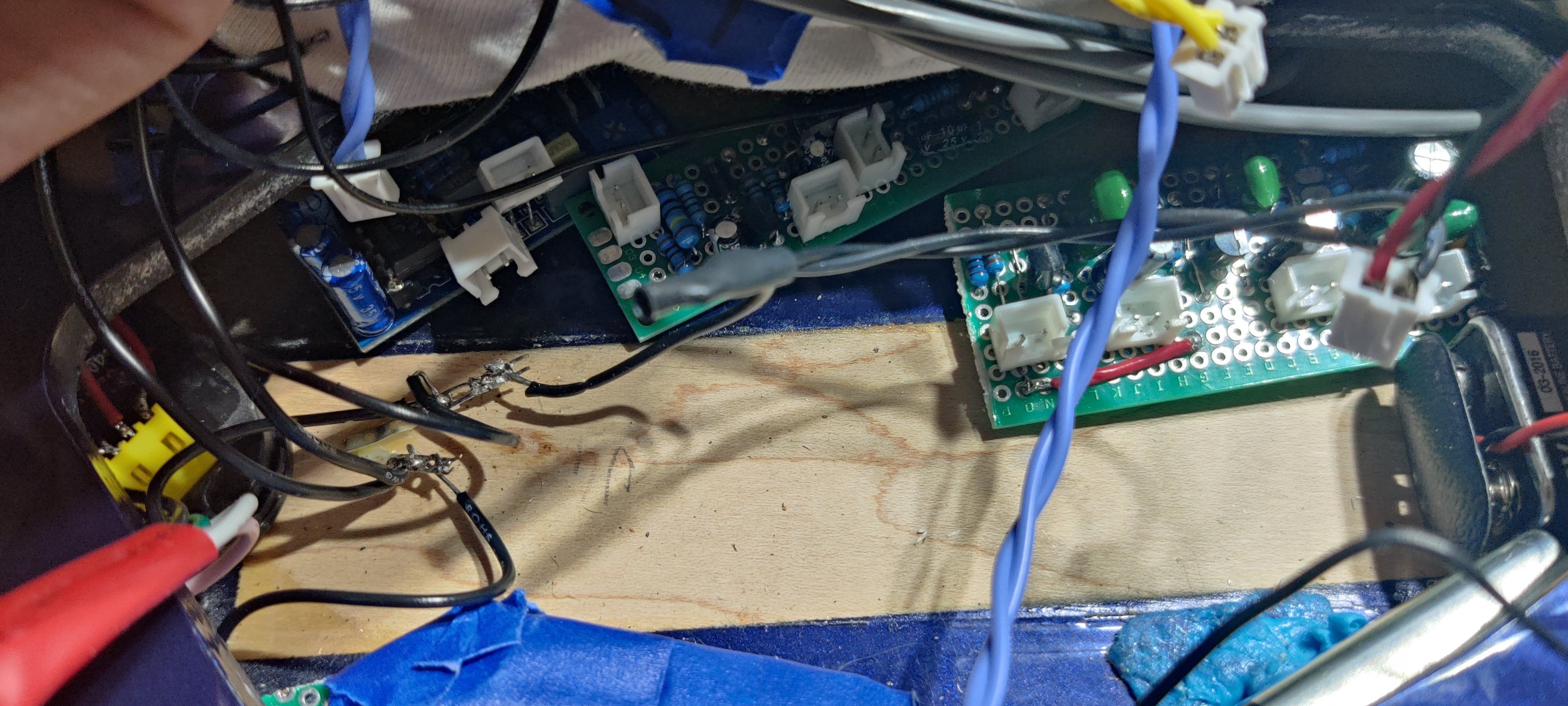

Over the course of a year, I learned a lot. It was pretty finicky at first. I refined the circuits and their installation over time, removing the bits that didn't deliver.

Before these heavy mods, I installed a piezo pickup to always blend with the neck pickup. It was a really nice tone improvement. Years later, at a guitar conference, I tried an amazing acoustic piezo/mic pickup combo that sounded very natural. I installed an electret mic with its own switch but I never really got anything good out of it. I mostly got bad squealing feedback like you get from a microphone. Occasionally it sounded cool, but only running it through a thick fuzz. In the big overhaul, I placed the mic toggle under a fighter-pilot-style switch cover. Over time I realized it wasn't that great. The circuit and controls added complexity and took up space that could be better used.

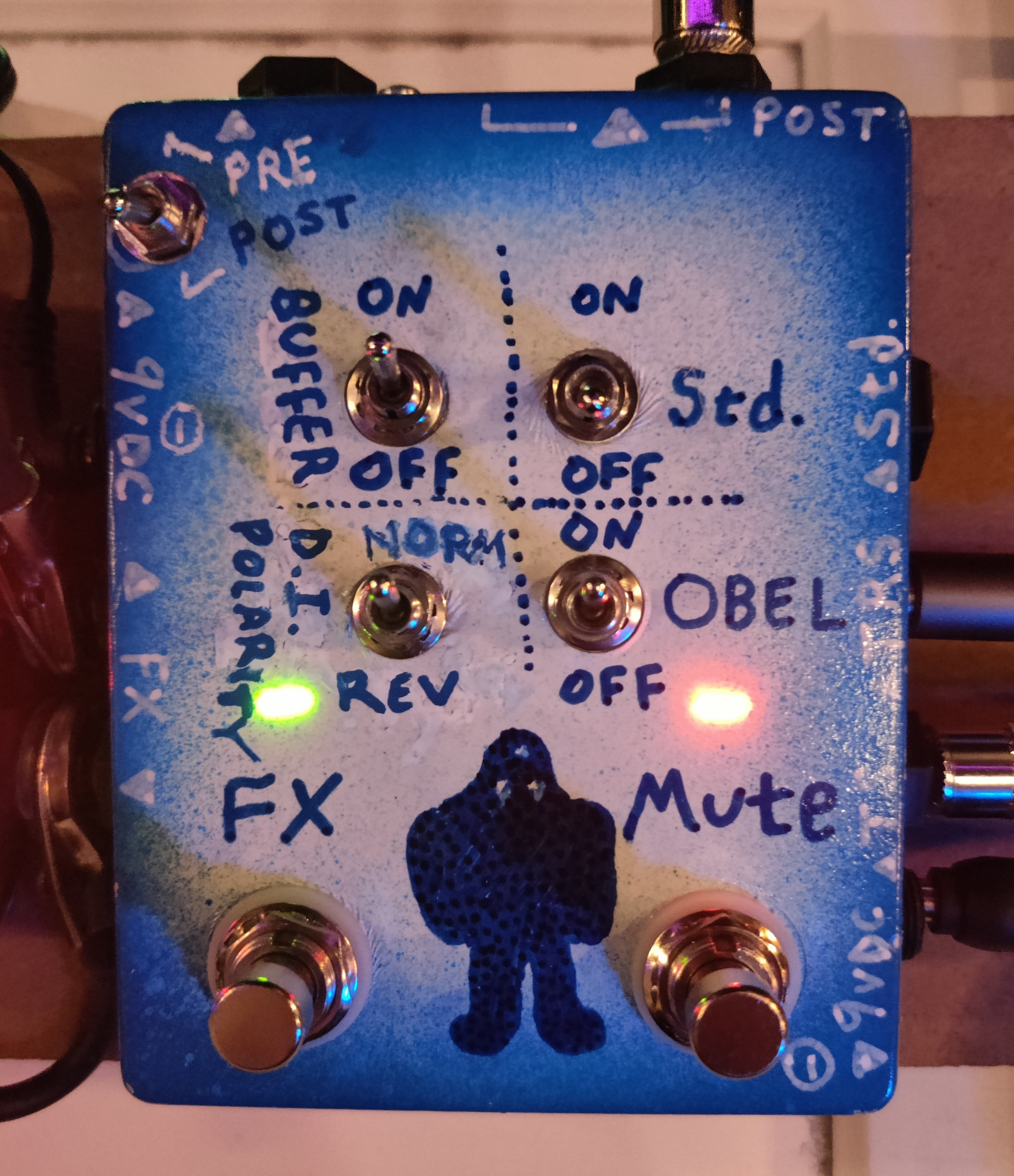

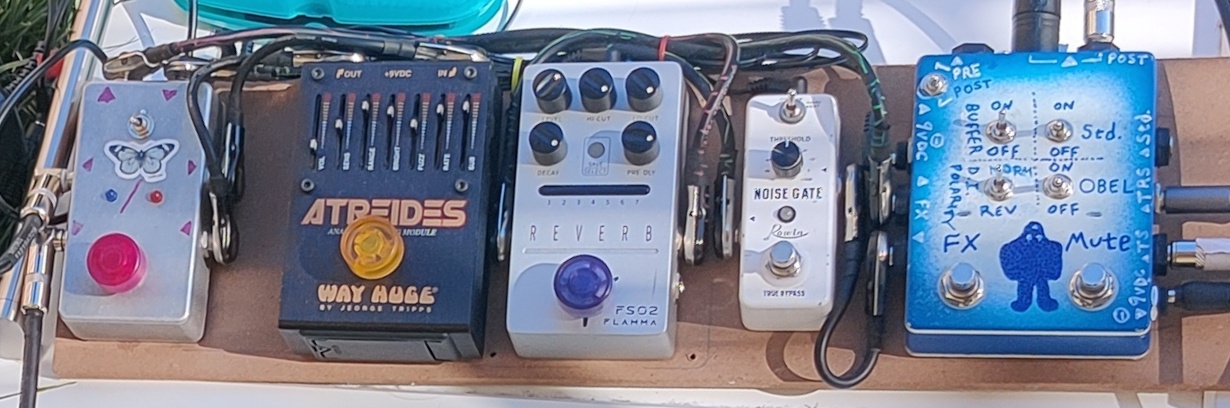

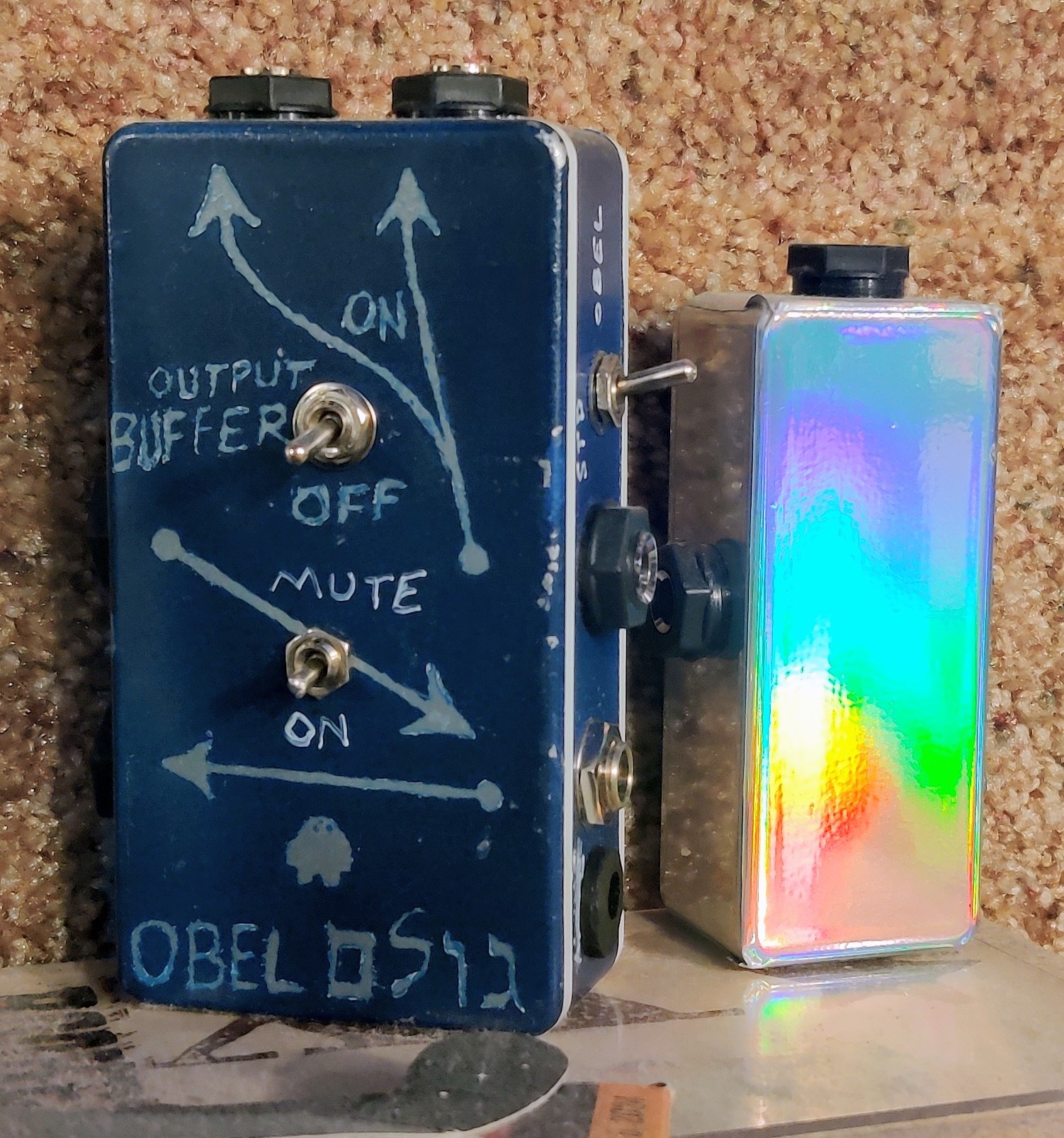

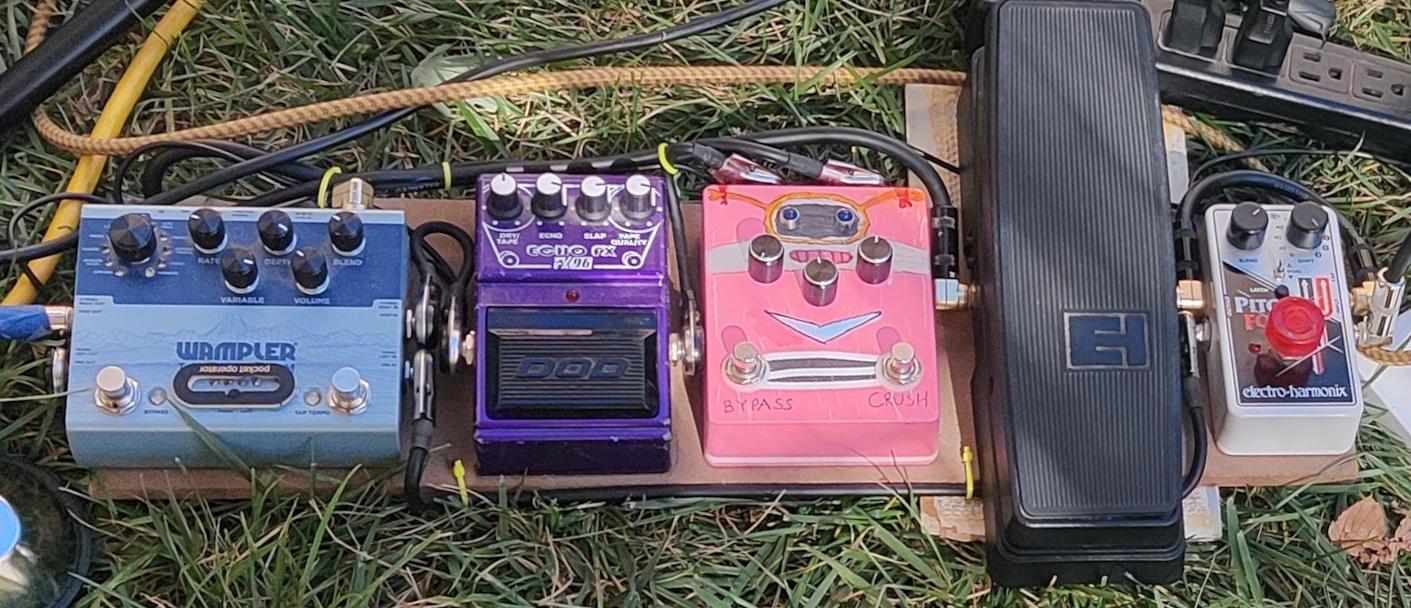

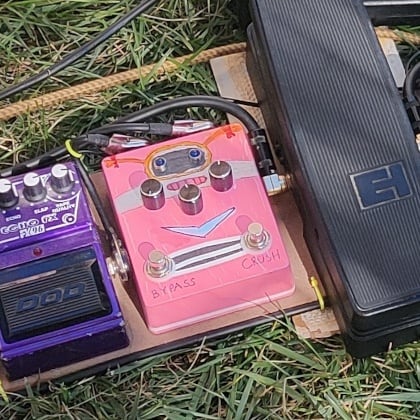

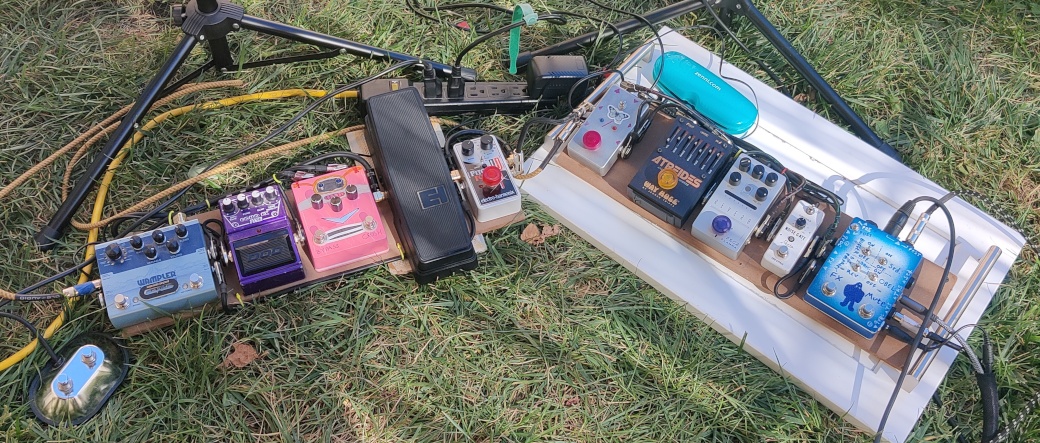

Initially I just had the two cables: stereo in/out to the board through a stereo splitter box, and mono out to the amp. The second iteration bundled both cables and went into a custom pedal. I added a power cable to the bundle and also had that going into the pedal. I kept adding features until I ran out of space. I'm on my third iteration and it's been solid so far (except for the occasional “switch pop” when I unmute).

What's Next?

Being a golem, however, it still has some unsolved mysteries. Here's a brief list, along with some future features I'm considering.

• The treble boost makes the tone “shinier” but doesn't boost the volume. When using only the bridge pickup with the treble boost, the volume is actually lower. My guess is it's an impedance issue.
• The tremolo affects one pickup way more than the other and I wish it would be more even.
• I'd like the middle LED to light up when the compressor is compressing. I already have a circuit in mind.

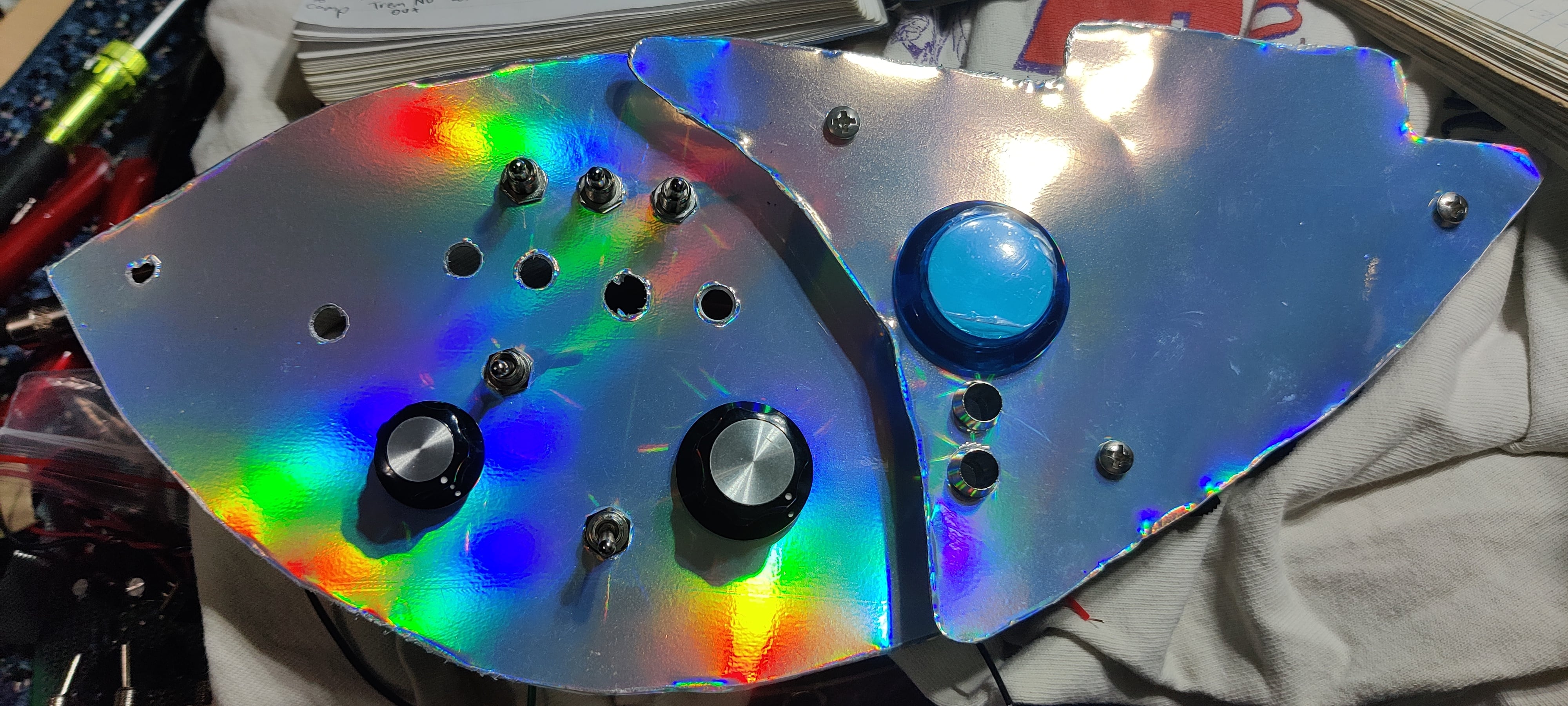

• Maybe I would give another go at the cookie-sheet pickguard. This time using the library's laser cutter instead of sweating with a hacksaw.
